Flexiable diffuser
See Detail

Tel: +86 760 22313838 / 22316868

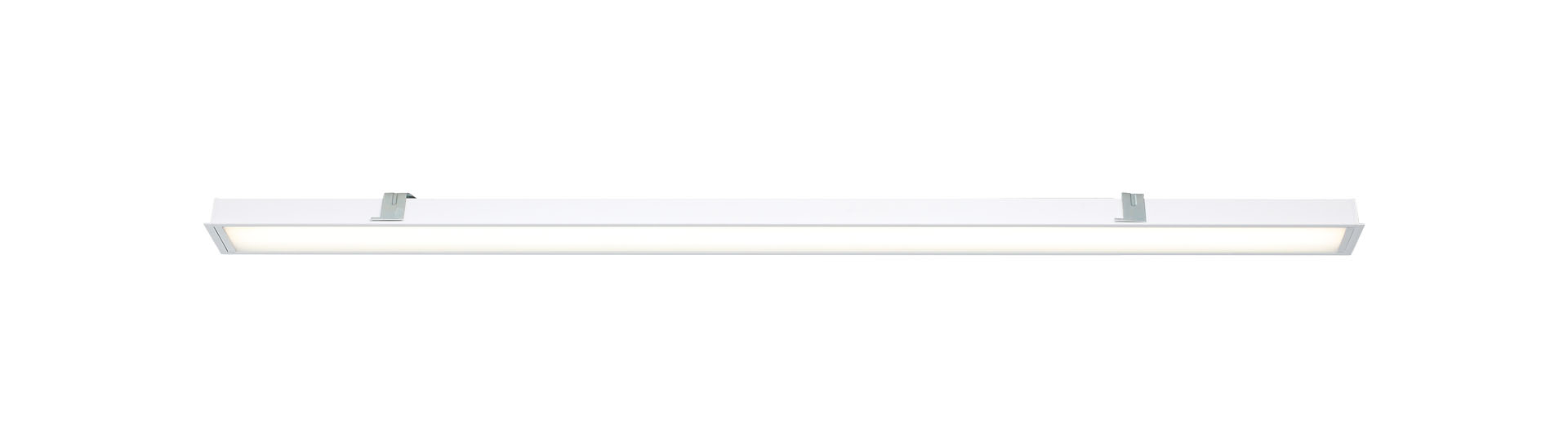

Flexiable diffuser
PH-FD-09511-RLX
Light Distribution:

Single Sided Lighting

Size:

1143*95*40

Beam Angle:

101°

Previous Page

PH-FD-09511-RLX

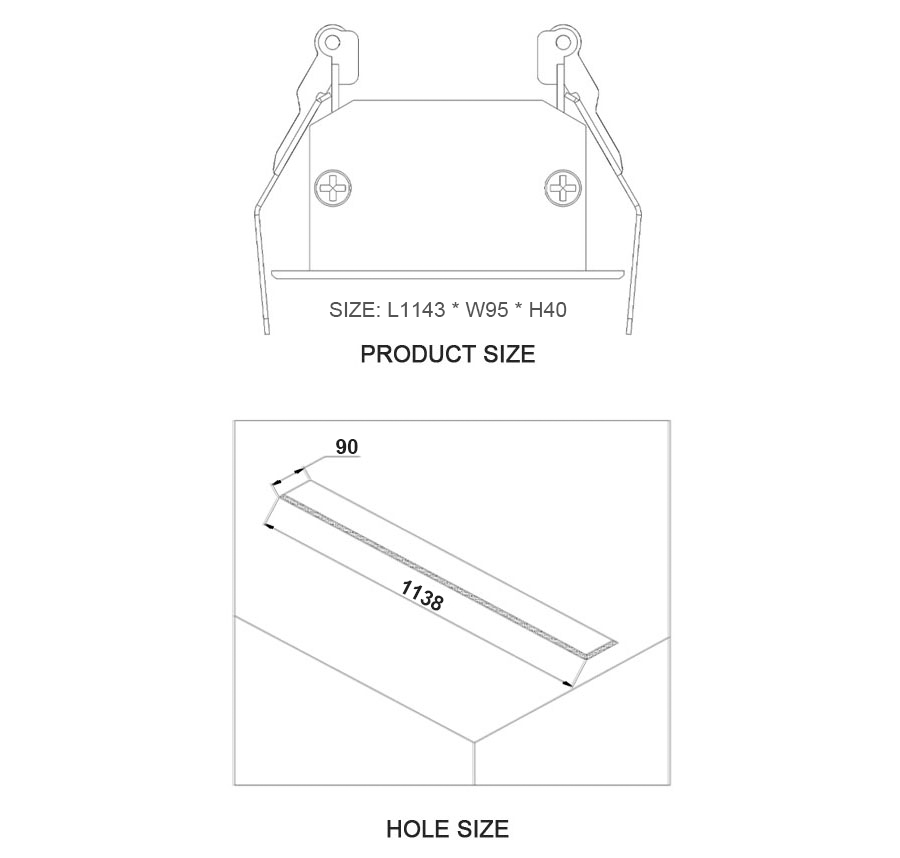

Size: 1143*95*40
Specification
  • Input Voltage: 220-240V
  • Input Power: 30W
  • Light Source: SAMSUNG 2835
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.969
  • Lm/W: 92
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: 2398
  • Lnsulation Class: CLASS Ⅱ
  • Output Voltage: DC 27-54V
  • UGR: ＜19
  • (G.W. / N.W.): 2.45/2.95kg
  • Output Current: DC 700mA±5%
  • Beam Angle: 101°
  • Package Dimensions: 133*14*9cm
  • Lifespan: 30000H
  • Diffuser material: PC
Photometric Results
Aluminum specifications
Stitching method
Installation method
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
583mm 15w 92 101° 1198 Ra>80
863mm 22w 92 101° 1757 Ra>80
1143mm 30w 92 101° 2398 Ra>80
1423mm 38w 92 101° 3036 Ra>80
1703mm 45w 92 101° 3595 Ra>80
1983mm 52w 92 101° 4154 Ra>80
2263mm 60w 92 101° 4794 Ra>80
Different Power
Size Input Power Luminous Flux
L1143*W95*H40mm 20w 1598
30w 2398
40w 3196
