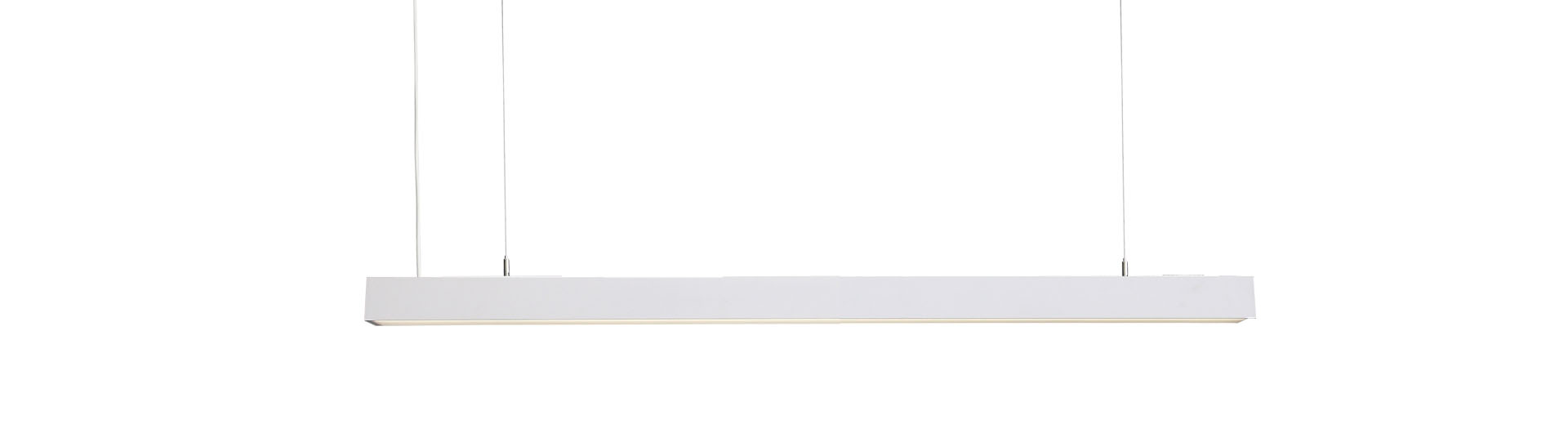

Single Sided Lighting
1136*62*82

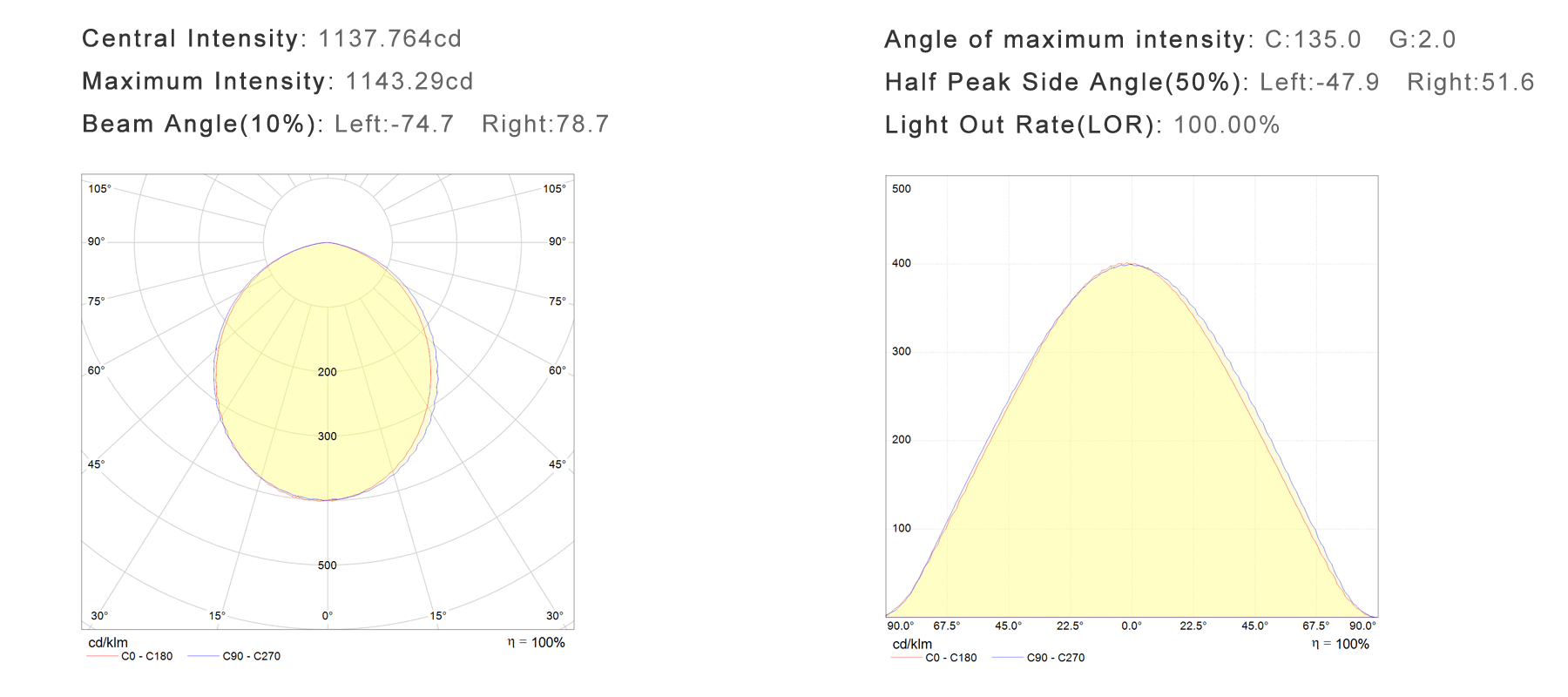

88°
| Size | Input Power | Lm/W | Beam Angle | Luminous Flux | Ra |
| 576mm | 15w | 80 | 88° | 1150 | Ra>80 |
| 856mm | 22w | 80 | 88° | 1686 | Ra>80 |
| 1136mm | 30w | 80 | 88° | 2300 | Ra>80 |
| 1416mm | 38w | 80 | 88° | 2913 | Ra>80 |
| 1696mm | 45w | 80 | 88° | 3449 | Ra>80 |
| 1976mm | 52w | 80 | 88° | 3986 | Ra>80 |
| 2256mm | 60w | 80 | 88° | 4600 | Ra>80 |
| Size | Input Power | Luminous Flux |
| L1136*W78*H102mm | 20w | 1533 |
| 30w | 2300 | |
| 40w | 3066 |
