Flexiable diffuser
See Detail

Tel: +86 760 22313838 / 22316868

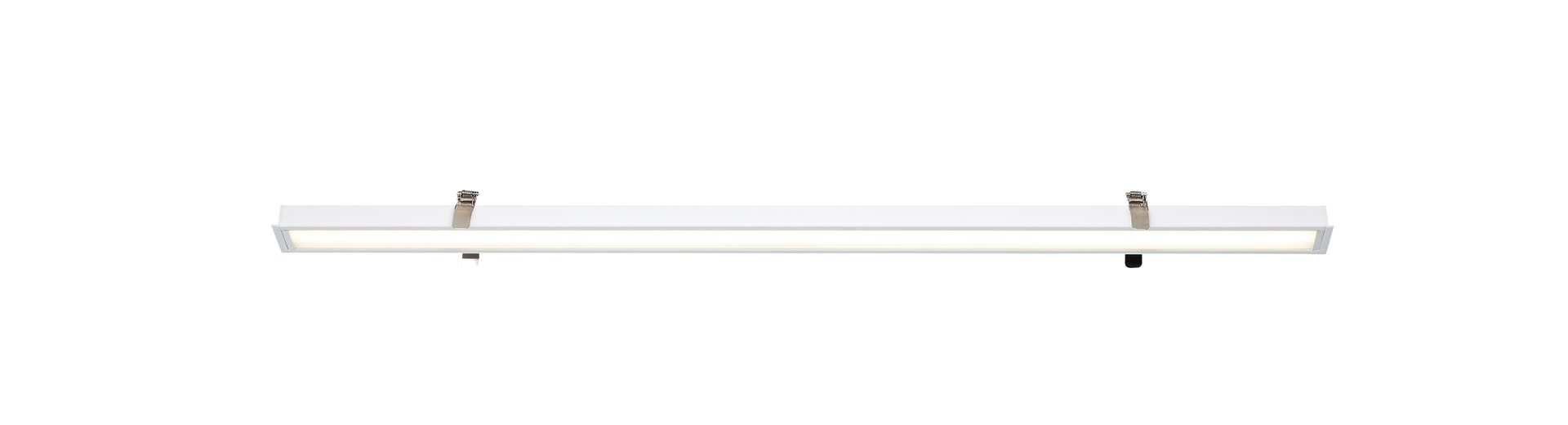

Flexiable diffuser
PH-FD-06011-RLT
Light Distribution:

Single Sided Lighting

Size:

1143*60*32

Beam Angle:

100°

Previous Page

PH-FD-06011-RLT

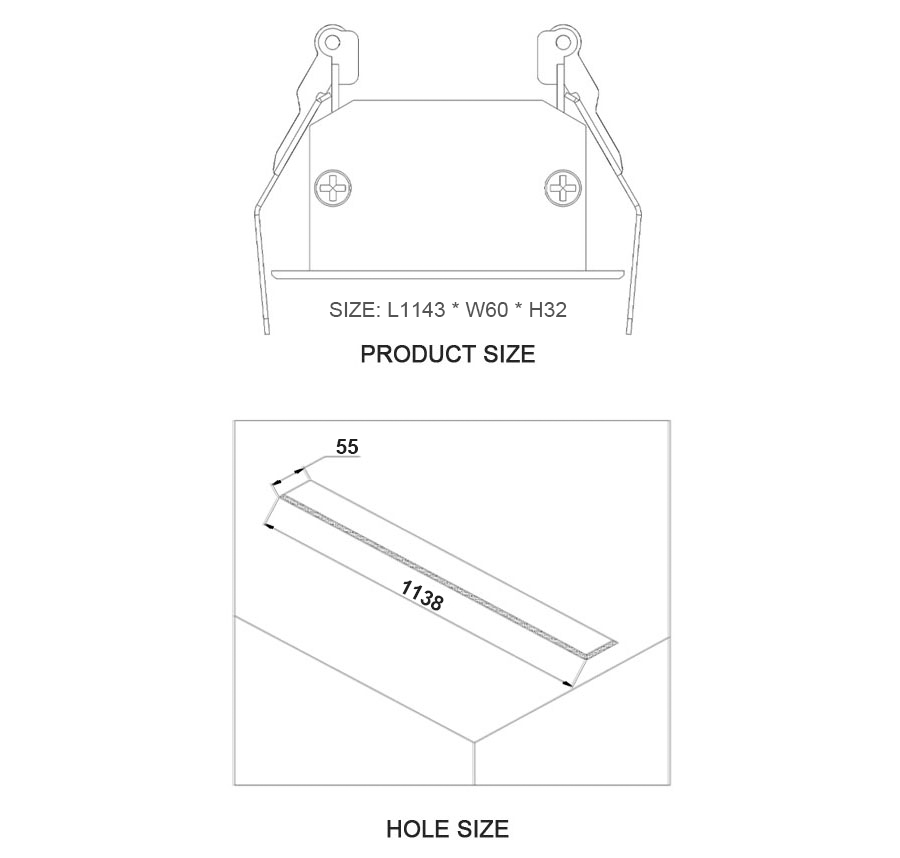

Size: 1143*60*32
Specification
  • Input Voltage: 220-240V
  • Input Power: 30W
  • Light Source: SAMSUNG 2835 0.2W
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.966
  • Lm/W: 77
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: 2072
  • Lnsulation Class: CLASS Ⅱ
  • Output Voltage: DC 27-54V
  • UGR: < 19.0
  • (G.W. / N.W.): 1.2/1.7kg
  • Output Current: DC 700mA±5%
  • Beam Angle: 100°
  • Package Dimensions: 133*15*10cm
  • Lifespan: 30000H
  • Diffuser material: PC
Photometric Results
Aluminum specifications
Stitching method
Installation method
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
583mm 15w 77 100° 1035 Ra>80
863mm 22w 77 100° 1518 Ra>80
1143mm 30w 77 100° 2072 Ra>80
1423mm 38w 77 100° 2622 Ra>80
1703mm 45w 77 100° 3105 Ra>80
1983mm 52w 77 100° 3588 Ra>80
2263mm 60w 77 100° 4140 Ra>80
Different Power
Size Input Power Luminous Flux
L1143*W60*H32mm 20w 1380
30w 2072
40w 2760
