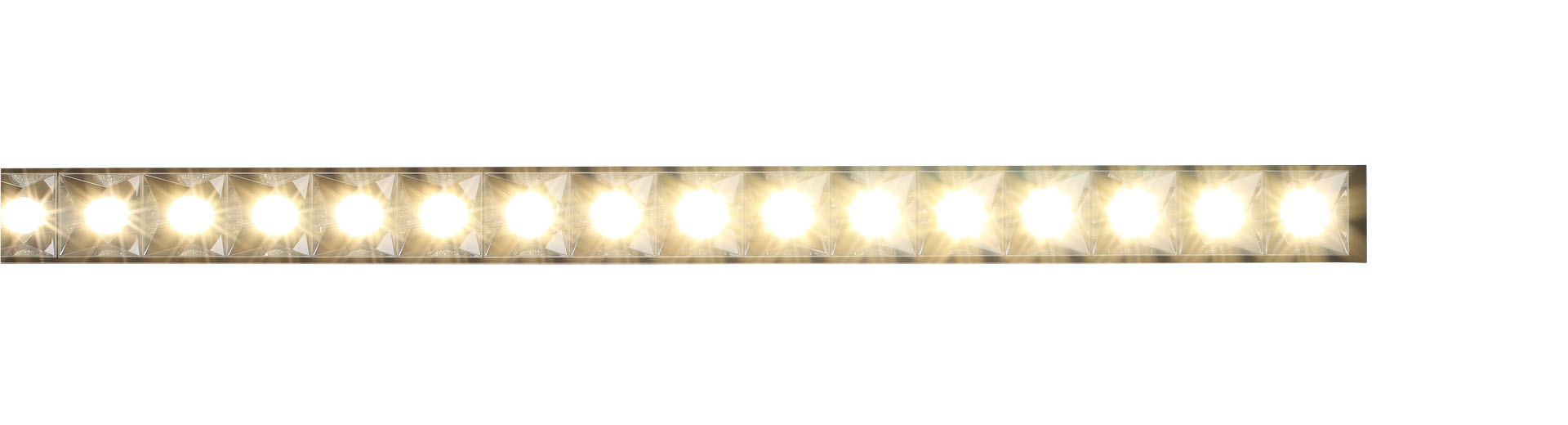

PH-SM-03451-SL
Light Distribution:

Single Sided Lighting

Size:

1214*34*100

Beam Angle:

40.3°

Previous Page

PH-SM-03451-SL
Size: 1214*34*100
Specification
  • Input Voltage: 220-240V
  • Input Power: 30W
  • Light Source: XPE2
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.943
  • Lm/W: 104.5
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: 3135
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: < 18.0
  • (G.W. / N.W.): 2.4/2.9kg
  • Output Current: DC 900mA±5%
  • Beam Angle: 40.3°
  • Package Dimensions: 135*8*15.5cm
  • Lifespan: 30000H

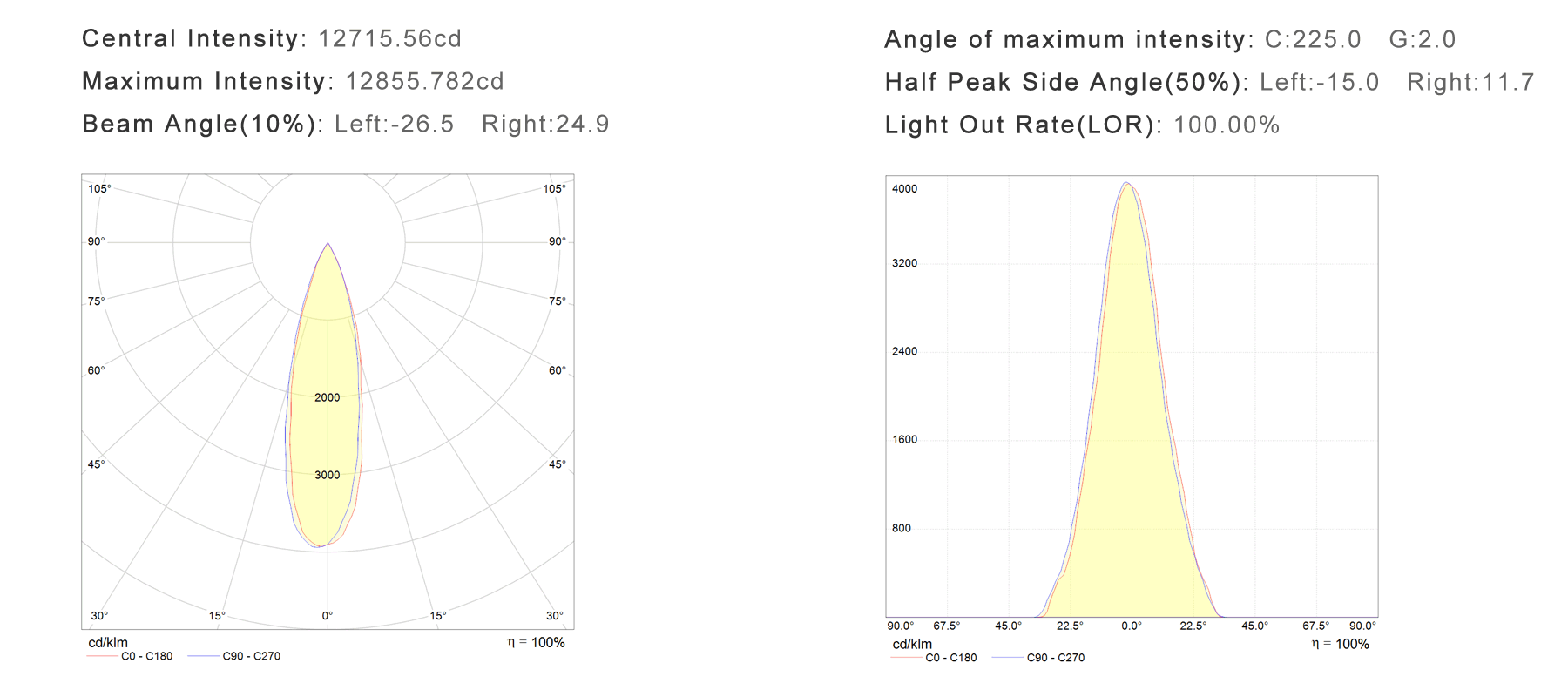

Photometric Results
Aluminum specifications
Stitching method
Composite signal
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
1214mm 30w 104.5 40.3° 3135 Ra>80
2420mm 60w 104.5 40.3° 6270 Ra>80
Different Power
Size Input Power Luminous Flux
L1214*W34*H100mm 20w 2090
30w 3135
40w 4180
