Slim
PH-SM-03431-SL
Light Distribution:

Single Sided Lighting

Size:

1133*34*100

Beam Angle:

20°

Previous Page

PH-SM-03431-SL
Size: 1133*34*100
Specification
  • Input Voltage: 220-240V
  • Input Power: 30W
  • Light Source: SAMSUNG 2835 0.5W
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.969
  • Lm/W: 110
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: 3031
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: < 18.0
  • (G.W. / N.W.): 2.8/3.3kg
  • Output Current: DC 700mA±5%
  • Beam Angle: 20°
  • Package Dimensions: 126*8*15.5cm
  • Lifespan: 30000H

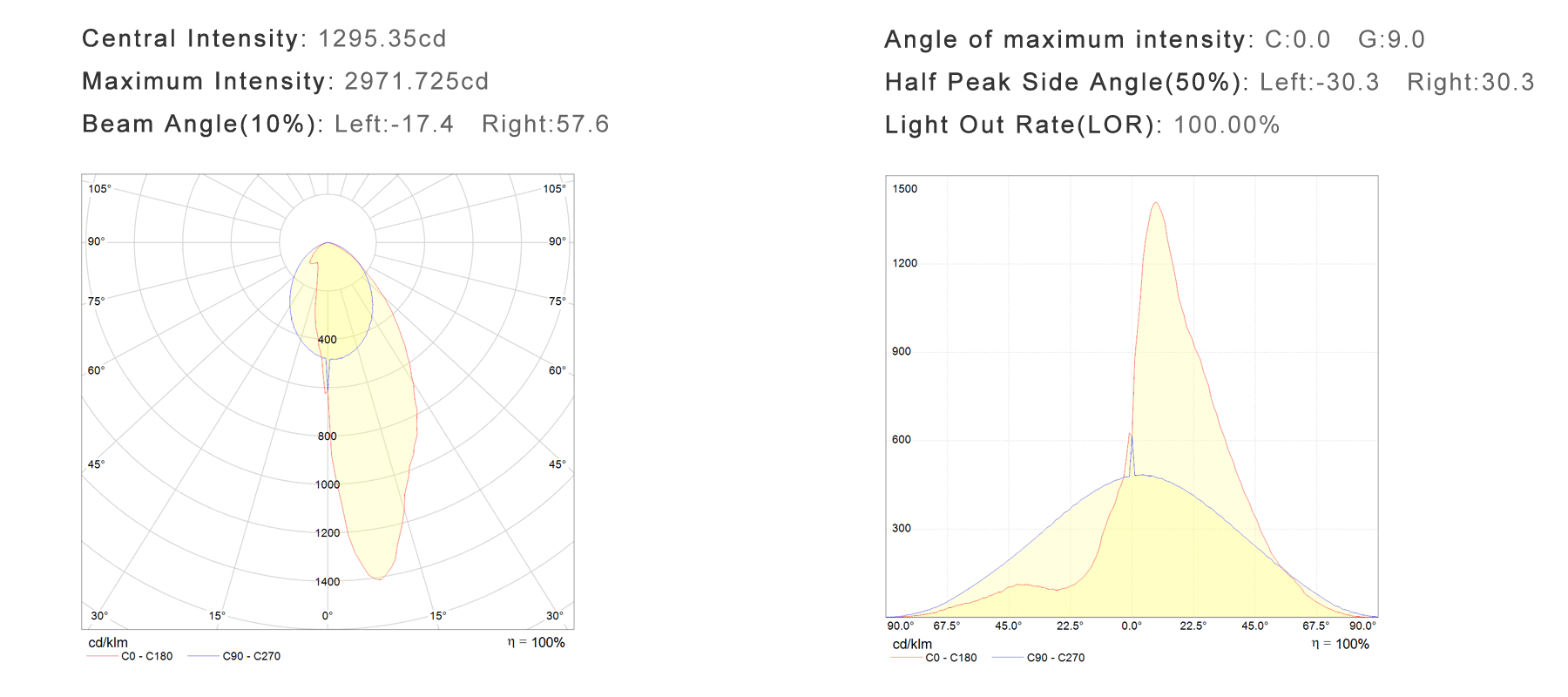

Photometric Results
Aluminum specifications
Stitching method
Composite signal
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
573mm 15w 110 20° 1515 Ra>80
853mm 22w 110 20° 2222 Ra>80
1133mm 30w 110 20° 3031 Ra>80
1413mm 38w 110 20° 3838 Ra>80
1693mm 45w 110 20° 4545 Ra>80
1973mm 52w 110 20° 5252 Ra>80
2253mm 60w 110 20° 6060 Ra>80
Different Power
Size Input Power Luminous Flux
L1133*W34*H100mm 20w 2200
30w 3031
40w 4042
Download All
