Personality series

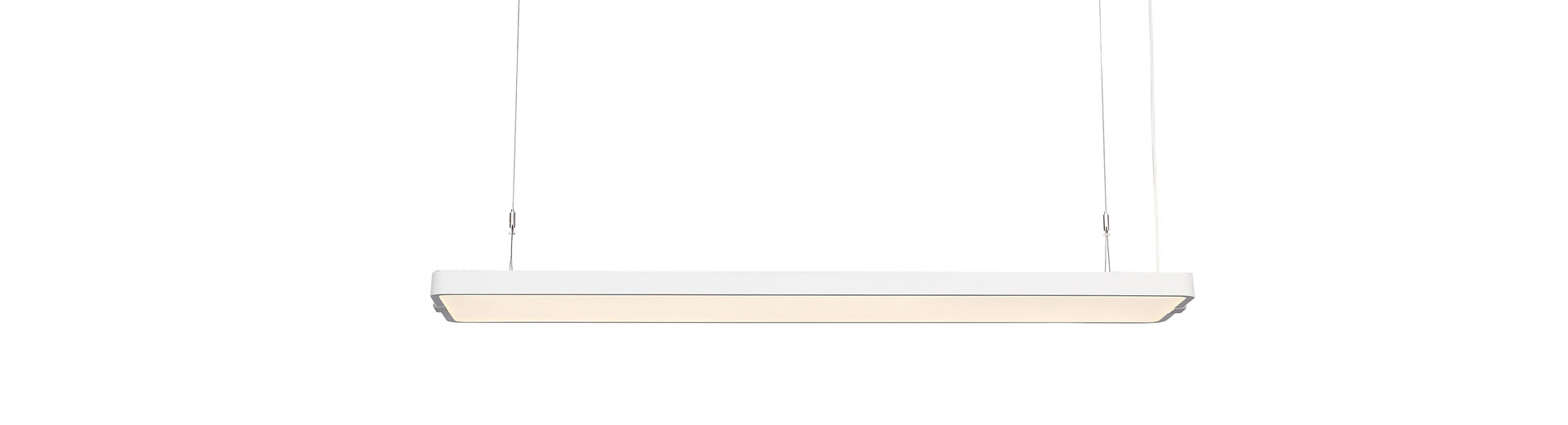

PH-PL-38022-SL
Light Distribution:

Double Sided Lighting

Size:

1150*320*40MM

Beam Angle:

85.8°

PH-PL-38022-SL
Size: 1150*320*40MM
Specification
  • Input Voltage: 220-240V
  • Input Power: 88W
  • Light Source: SAMSUNG 4014 0.5W
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.968
  • Lm/W: Indirect: 140 Direct: 97
  • Color:
  • Power Efficiency: 87.0%
  • Luminous Flux: Indirect: 3951 Direct: 5802
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: < 18.0
  • (G.W. / N.W.): 8.0/8.5kg
  • Output Current: DC 2100mA±5%
  • Beam Angle: 85.8°
  • Package Dimensions: 37.5*9*127.5cm
  • Lifespan: 30000H
  • Diffuser material: PMMA

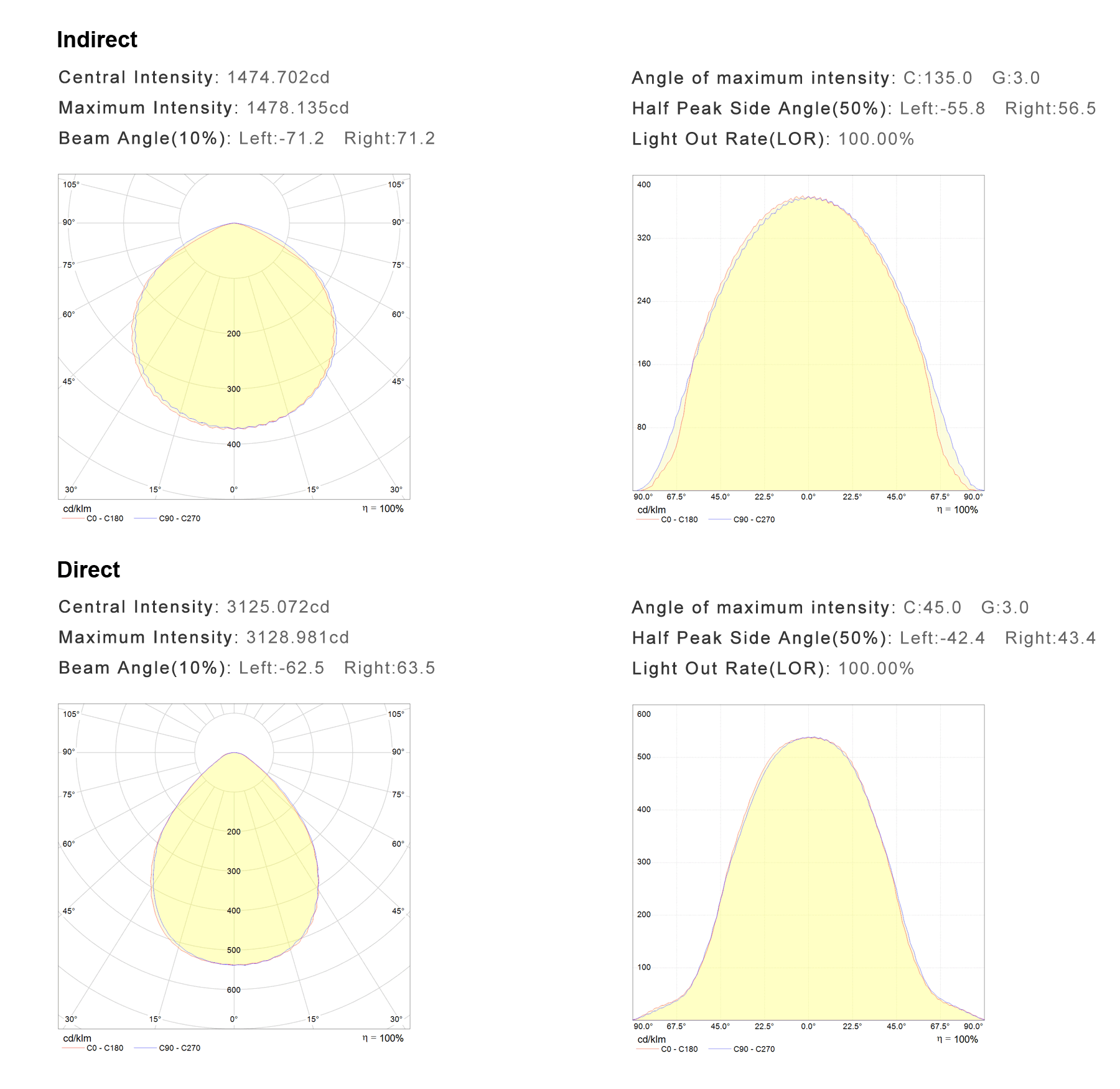

Photometric Results
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
Different Power
Size Input Power Luminous Flux
Design Concept

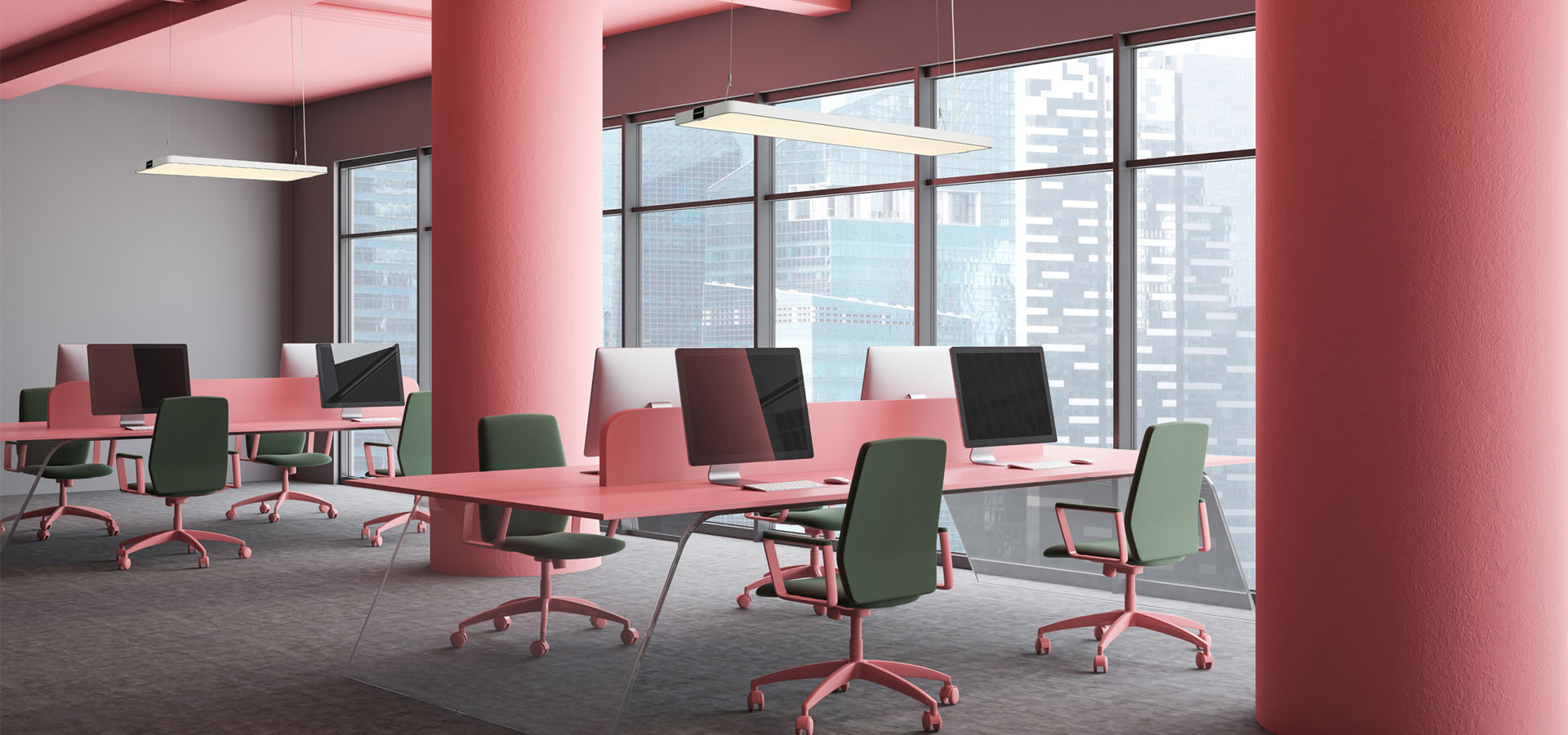

Application
Product Video
Related products
